Magnetic Strip Card

Magnetic Strip Card-Magstripe Width

• Only Track 1 : 1/4″ (about 6.35mm)
• Track1,Track2: 5/16″ (about 8.5mm)
• Track1,Track2,Track3 : 1/2″ (about 12.7mm)

Magnetic Strip Card-Magstripe Density

There are 4 common densities of magnetic stripes:

• Loco (Low Coercivity):
  • 300 Oe (350 Oe)–typically used for short-term or intermittent applications such as access cards, event tickets, or gift cards…Suitable for the environment with lower safety requirement.
  • 300 Oe (350 Oe)–typically used for short-term or intermittent applications such as access cards, event tickets, or gift cards…Suitable for the environment with lower safety requirement.
• Hico(High Coercivity):

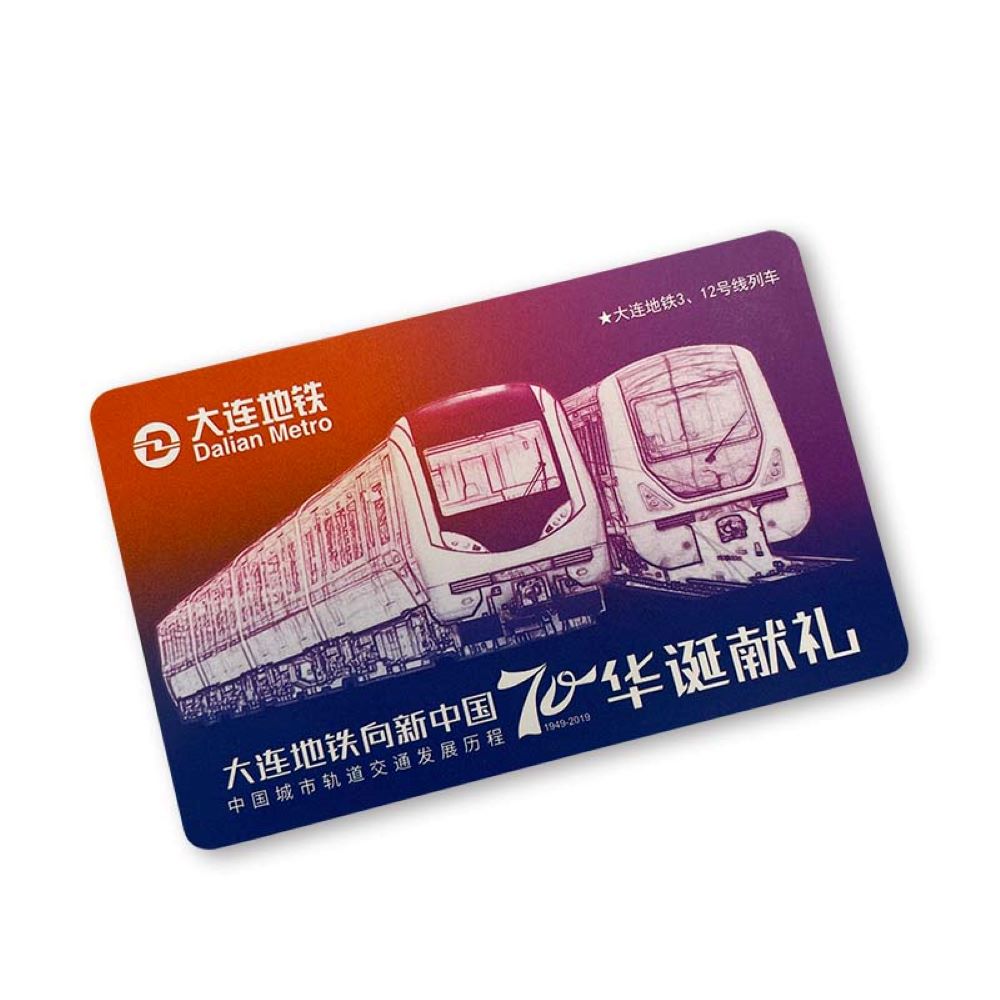

  • 2750 Oe–It has strong anti-degaussing ability. Usually used for long-term use cards, like employee cards，access cards，metro cards，student cards…
  • 4000 Oe–It is the most magnetic, has extremely strong resistance to degaussing.It is typically used in extreme or high interference environments.

Magnetic Strip Card-Track(s) To Be Encoded

There can be up to 3 tracks. You can encode 1-3 tracks, although track 3 is very rarely used.there can be up to 3 tracks. You can encode 1-3 tracks, although track 3 is very rarely used.

Track 1: 79 characters (alphanumeric) 7 bit = 210 bit /in. – Encoding starts with % (percent sign) and ends with ? (question mark), the common field separator is ^

Track 2: 40 characters (numeric only) 5 bit = 75 bits /in. – Encoding starts with ; (semi-colon) and ends with ? (question mark), the common field separator is =

Track 3: 107 characters (numeric only) 5 bits = 210 bits /in. Encoding starts with ; and ends with ? the common field separator is =
