WINDSHIELD TAG is the ultimate solution for adhesive UHF RFID security label,designed for application on glass surfaces, such as the windshield of vehicles.

RFID Windshield Tags

rfid-windshield-tags

RFID Windshield Labels are high-performance UHF RFID vehicle tags designed for automatic and contactless identification. Applied to the inner side of a car’s windshield, they enable fast and reliable reading for toll collection, parking management, and vehicle access control systems.

These UHF windshield labels use strong adhesive backing for secure attachment and stable performance, even under heat, sunlight, or humidity. Made from durable PET or paper materials, they are ideal for long-term outdoor use.

The tags can be custom printed with a logo, barcode, QR code, or serial number for easy tracking and brand recognition, making them a practical choice for smart transportation and fleet management solutions.

inquiry now

Please Leave Your Requests Here…

Full Name
Company Name
Email
Message
Phone
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.

Features of RFID Windshield Tags

  • Global operation 860 to 960 MHz
  • Accord EPC Class1 Gen2 standard
  • The best solution for Glass surface, windshield applications
  • Long-distance recognition, adjustable distance of 1-15m, fast card reading speed, no speed limit, no missing reading.
  • Infrared positioning and RFID windshield tags with no interference.
  • Automatic destruction upon tampering to prevent vandalism.
  • Optional of Tamper proof, Brittle antenna
  • Applications: Access/Parking/Toll Collection/Vehicle ID
UHF Windshield Labels
rfid-windshield-tag
850~960MHz RFID Windshield Tags
etc-toll-tag
RFID Windshield Tags For ETC

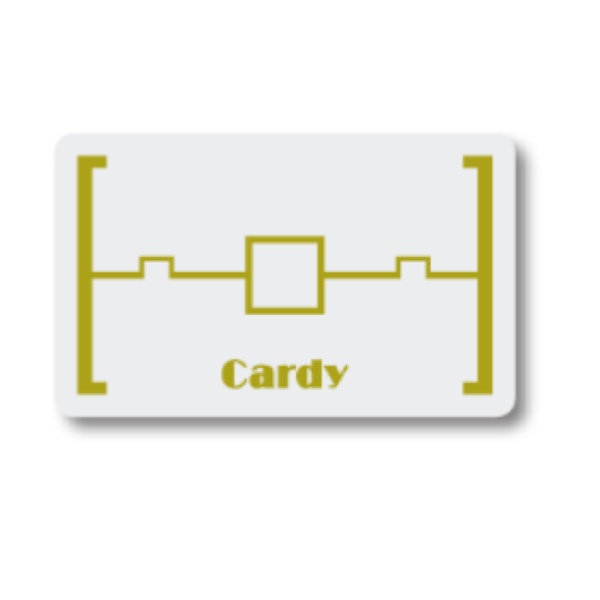

rfid-ceramic-tags
Anti-metal Tamper Evident UHF RFID Ceramic Tag

Custom RFID Windshield Tags

Frequency860～960MHz
Air Interface ProtocolEPC global UHF Class 1 Gen 2 (ISO 18000-6C)
Base materialPP synthetic paper/ Ceramic or customized
Attachment Method3M Adhesive/General Purpose Adhesive or enclose coated paper
Application Surface MaterialsGlass, Plastic, Wood, Cardboard (support custom feature of on-metal)
Tag Form FactorDry Inlay/wet inlay/White wet inlay(label) or custom designs.
CustomizationSizes,appearance design printing, logo/QR code/Bar code /number printing,or encoding…
PrintingCMYK printing (Heidelberg offset printing machine) ,laser printing, UV printing
Craftsa. Anti-metal layer, 3M adhesive
b. Serial number or UID printing
c. Encoding and encryption
Chip types/IC TypesPlease refer to UHF RFID Chip List as right side.
Working modeRead/Write
Read distance1-10m
Write distance
Write Endurance100,000 cycles
Data retention50 years
Anti-collisionYes
Antenna materialAluminum
Antenna Size44*44 mm, 93*19 mm… (Cardy has over 50 types of different antenna mold for options)
Operating Temp-40° to +70°C (PP synthetic paper labels)
Storage condition20% to 90% RH(PP synthetic paper labels)

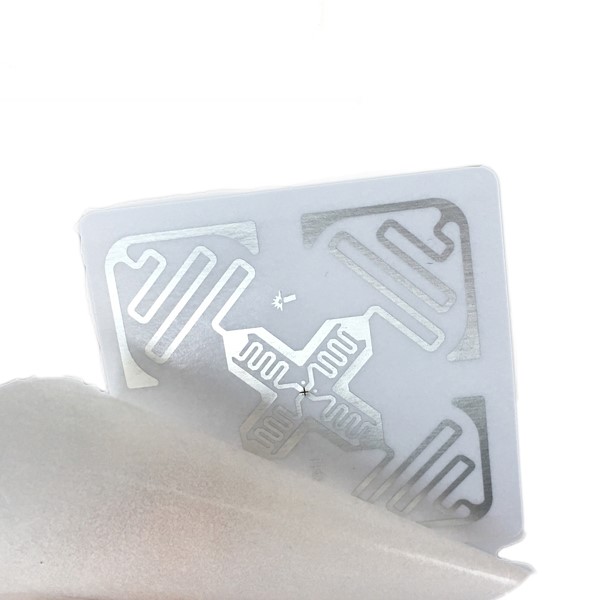

Impinj-M4QT-wet-inaly
uhf-rfid-windshield-tag
passive-rfid-windshield-tag
ceramic-rfid-windshield-tag

Ceramic RFID Windshield Tag

  • Anti-metal function
  • Anti-counterfeiting function
  • Work stably without influence of heat and proof membrane.
  • High temperature resistant and chemical resistant

UHF RFID Chip Options

RFID chips listed as below are some of chips we have, more options please contact our sale staff to confirm according to your specific requests.

FrequencyProtocolChipTIDEPCUser MemoryRemark
UHF
860-960MHz		ISO18000- 6CUCODE® 796 bits128 bits0 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 7m96 bits128 bits32 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 7xm96 bits428 bits2048 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 7xm+96 bits428 bits2048 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 896 bits128 bits0 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 8m96 bits96 bits32 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 996 bits96 bits0 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® 9xe96 bits128 bits0 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® DNA96 bits224 bits3072 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
UHF
860-960MHz		ISO18000- 6CUCODE® G2iM96 bits128-448 bits320-640 bitsUCODE® is a registered trademark of NXP B.V. and are used under license.
aTTACHMENT DOWNLOAD

Please leave your information below before download attachment

Full Name
Email
Company Name
Job Title
Bussiness Type/What are you looking for…
Phone
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.
FrequencyProtocalChipTIDEPCUser MemorySupplier
UHF
860-960MHz		ISO/IEC
18000-6C		Impinj M4E96 bits496 bits128 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M4QT96 bits128 bits512 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M4I96 bits526 bits480 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M4I96 bits128 bits32 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj Monza R696 bits96 bits0 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj Monza R6-A96 bits96 bits0 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj Monza R6-P96 bits128/96 bits32/64 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M73096 bits128 bits0 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M75096 bits96 bits32 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M78096 bits496 bits128 bitsImpinj
UHF
860-960MHz		ISO/IEC 18000-6CImpinj M78196 bits128 bits512 bitsImpinj
aTTACHMENT DOWNLOAD

Please leave your information below before download attachment

Full Name
Email
Company Name
Job Title
Bussiness Type/What are you looking for…
Phone
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.
ProtocolChip TID EPC User Memory Remark Supplier
ISO/IEC 18000-6CAlien Higgs®-396 bits96 bits512 bitsEPC can be extended to 480 bitsAlien
ISO/IEC 18000-6CAlien Higgs®-496 bits128 bits128 bitsAlien
ISO/IEC 18000-6CAlien Higgs®-996 bits96 bits688 bitsEPC can be extended to 496 bitsAlien
ISO/IEC 18000-6CAlien Higgs®-1096 bits96 bits32 bitsEPC can be extended to 128 bitsAlien
aTTACHMENT DOWNLOAD

Please leave your information below before download attachment

Full Name
Email
Company Name
Job Title
Bussiness Type/What are you looking for…
Phone
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.
Work FrequencyProtocolChipTIDEPCUser MemorySupplier
UHF
860-960MHZ		EPC Global Class1 Gen2V2 and ISO/IEC 18000-63(TypeC)FM13UF011E96 bits128 bits512 bitsFudan
UHF
860-960MHZ		EPC Global Class1 Gen2V2
ISO/IEC 18000-63(Type C)		FM13UF005196 bits96 bits32 bitsFudan
aTTACHMENT DOWNLOAD

Please leave your information below before download attachment

Full Name
Email
Company Name
Job Title
Bussiness Type/What are you looking for…
Phone
The form has been submitted successfully!
There has been some error while submitting the form. Please verify all form fields again.

Applications

etc-tags

Electronic Toll Collection (ETC)

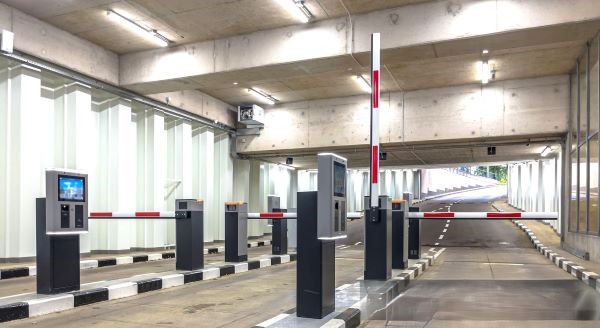

windshield-rfid

Parking & Access Control

rfid-tag-on-windshield

Electronic Vehicle Registration (EVI) & Vehicle Identification

passive-rfid-windshield-tag

Fleet Management
